3. Administration Guide #
This guide covers tasks performed by the Super Admin.
Tenant Management (Service Provider Edition) #
Tenants represent organisations. Each tenant has its own users, fax quota, PBX domain, billing package and credit, and optionally custom branding. A tenant is an organisation record only: it has no login. After creating a tenant, add a Tenant Admin user for it (see User Management). Tenants are flat: there are no sub-tenants or resellers.
Viewing Tenants #
Go to Administration → Tenants.

The list shows each tenant's company name, email, daily/monthly fax limits, and status.
Creating a Tenant #
Click Add Tenant.

| Field | Required | Description |
|---|---|---|
| Company Name | ✅ | Organisation name |
| First name / Last name | Primary contact | |
| Email Address | ✅ | Primary contact email |
| Phone | Contact phone | |
| Address / Country / Timezone | Optional location info | |
| Active | Enable or disable the tenant | |
| Daily Limit / Monthly Limit | Max faxes per day / month. -1 = Unlimited |
|
| Low-credit alert threshold | Email the tenant when credit drops below this value. 0 = disabled |
|
| Max concurrent calls | Simultaneous active calls allowed for this tenant. 0 = unlimited |
|
| Resource Quotas | Extensions, Devices, Ring Groups, Call Queues, Conferences, IVR Menus, Voicemail Boxes, Music on Hold | |
| Permissions | Features available to users under this tenant |
Permissions determine which menu items and actions are available to users under this tenant. Check every feature this organisation should have access to:
- Fax permissions: Send Fax, Receive Fax, Fax to Email, Email to Fax, Personalize Fax, Bulk Fax, Cover Page, Fax Documents, Fax Settings
- Contacts permissions: Contacts, Contact Groups, Contact DNC
- PBX permissions: Extensions, Devices, Ring Groups, Call Queues, IVR Menus, Voicemail, Conferences, Time Conditions, Call Flows, Call Block, Follow Me, Music on Hold, Inbound Routes, Realtime
Click Submit. The tenant's own PBX/SIP domain (e.g. acme.local) is created automatically, so extension numbers only need to be unique within a tenant.
Editing a Tenant #
Click the Edit (pencil) icon on any tenant row, change the fields and click Update. Reducing a tenant's permissions does not immediately revoke existing user permissions: those are enforced at login and on save. Tenant Admins cannot edit their own tenant record.
Deleting a Tenant #
Click the Delete (trash) icon. This removes the tenant record. Associated users should be removed first.
User Management #
Users are individuals who log in to ICTPBX. Every user belongs to a tenant. There are three roles: Super Admin, Tenant Admin and End User.
Viewing Users #
Go to Administration → User Management.

The list shows username, full name, tenant, role, and status. Use the search field to filter.
Creating a User #
Click Add User.

Basic Information #
| Field | Required | Description |
|---|---|---|
| API Username | ✅ | Used as the login email address |
| Default Caller ID | Caller ID used for this user's outbound calls/faxes | |
| Password | ✅ (new users) | Must meet the password policy |
| Confirm Password | ✅ | Must match password |
| First name | ✅ | |
| Last name | ||
| Phone / Email / Address | Contact details | |
| Country / Timezone | Timezone is used for scheduling and reports | |
| Active | Enable or disable the login |
Select Role and tenant #
Only the Super Admin sees this card. Tick tenant to make the user a Tenant Admin, or end_user for an End User, and choose the Tenant the user belongs to. The Super Admin role cannot be assigned from this form.
Fax Quota (Service Provider Edition) #
| Field | Description |
|---|---|
| Daily Limit | Max faxes this user can send per day. Cannot exceed the tenant's remaining daily pool. -1 = Unlimited (admin only). |
| Monthly Limit | Max faxes per month. Same constraints. |
Permissions #
Scroll to the Fax Permissions and PBX Permissions cards and check each feature to enable.

Permissions are grouped by category. Permissions the selected tenant does not hold are greyed out. (Community Edition shows the PBX Permissions card only.) PBX Permissions and PBX Resource Allocation are hidden for End Users: End Users manage only their own extension, devices, follow-me and voicemail.
PBX Resource Allocation (Service Provider Edition) #
The PBX Resource Allocation card appears directly below the PBX Permissions card. It shows one quota input for each PBX permission that is checked in the form above: unchecked permissions produce no input row.

| Resource | Appears when permission is checked |
|---|---|
| Extensions | Extensions |
| Devices | Devices |
| Ring Groups | Ring Groups |
| Call Queues | Call Queues |
| IVR Menus | IVR Menus |
| Voicemail Boxes | Voicemail |
| Conferences | Conferences |
| Music on Hold | Music on Hold |
As Super Admin there is no upper cap: enter any positive integer. Unchecking a PBX permission automatically zeros its quota field. The allocated quota is enforced at object-creation time: if a user has used their full extension allocation, creating another extension returns a quota error.
Click Submit (or Update when editing).
Editing a User #
Click Edit on any user row. All fields including permissions and quotas are editable.
Deleting a User #
Click Delete on any user row.
Password Policy #
Go to Administration → Password Policy to set requirements:
- Minimum length
- Minimum uppercase / lowercase / numeric / special characters
- Password expiry and expiry notification
- Maximum failed login attempts before lockout
- Password history and session timeout
Announcement #
Go to Administration → Announcement to publish a message shown to users in the portal.
API Keys #
Go to Administration → API Keys and click New API Key to allow programmatic access to the REST API. Enter a Name, an optional Rate limit (requests/min, 0 = unlimited) and optional Expires date, then click Create. Copy the key immediately: it is shown only once. Send it as the X-API-Key header on API requests; the key acts with its user's permissions. Click Revoke to disable a key.

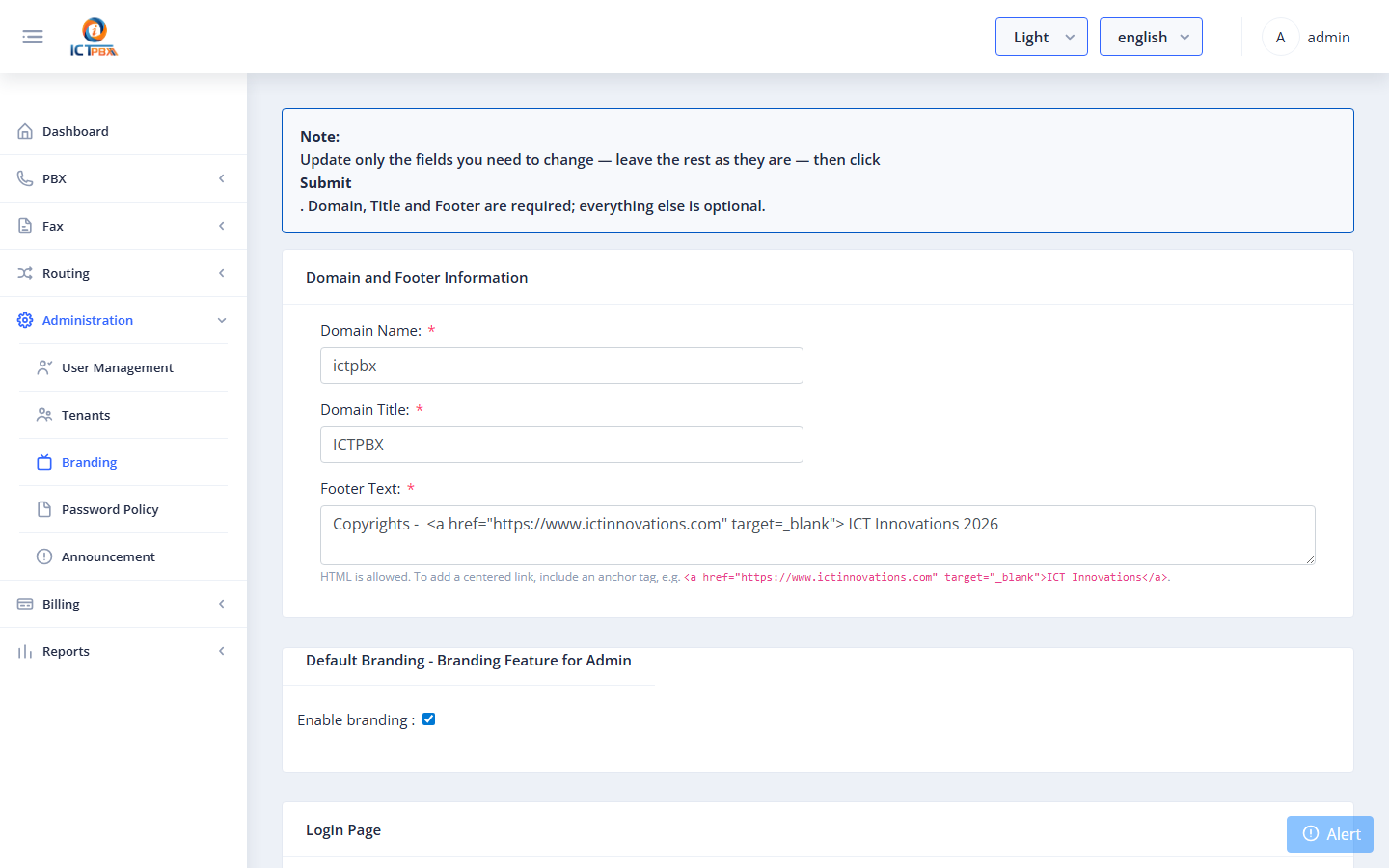

Branding (Service Provider Edition) #
Branding lets you customise the portal appearance per tenant. Only the Super Admin can manage branding.
Go to Administration → Branding and Select Tenant.

| Field | Description |
|---|---|
| Domain Name | Hostname this branding applies to (matched at login) |
| Domain Title | Browser tab / page title |
| Footer Text | Content shown at the bottom of every page |
| Login Subtitle | Shown beneath "Sign In" on the login page |
| Support Email | Shown to users in error messages on the login page |
| Login Background URL | Optional full-page background image for the login page |
| Favicon URL | Browser tab icon (32×32 or 64×64 PNG) |
| Locked Theme | Force all tenant users onto one theme and hide the theme switcher |
| Upload Logo | Image shown in the header |
The Default Branding option marks the fallback branding used when no domain match is found.
Billing (Service Provider Edition) #
Billing is driven by packages. Each package sets:
- PBX slot limits (extensions, devices, ring groups, etc.): hard limits; creating more is refused.
- Voice minutes, fax pages and conference minutes included free each month. Usage above the free amount is charged at your rates and deducted from the tenant's credit. Usage is processed hourly and the free allowance resets each month. Calls are not cut off when credit reaches zero: use the tenant's Low-credit alert threshold to be warned.
| Menu | Purpose |
|---|---|
| Billing → Rate Plans | Per-unit rates (by service, billing block and rate) |
| Billing → Plans | Groups of rates assigned to packages |
| Billing → Packages | Click + New Package; set Name, Billing Interval, Rate Plan and Resource Limits (0 = unlimited). A package can't be deleted while a tenant is subscribed to it |
| Billing → Subscriptions | Per tenant: Change Package (takes effect immediately), Suspend / Activate |
| Billing → Payments | Record a payment against a tenant (Cash, Cheque, Online Payment, Other): it adds to the tenant's credit |
| Billing → Quota | Slot usage and monthly usage allowance per resource |
| Billing → Usage | Usage and charges |

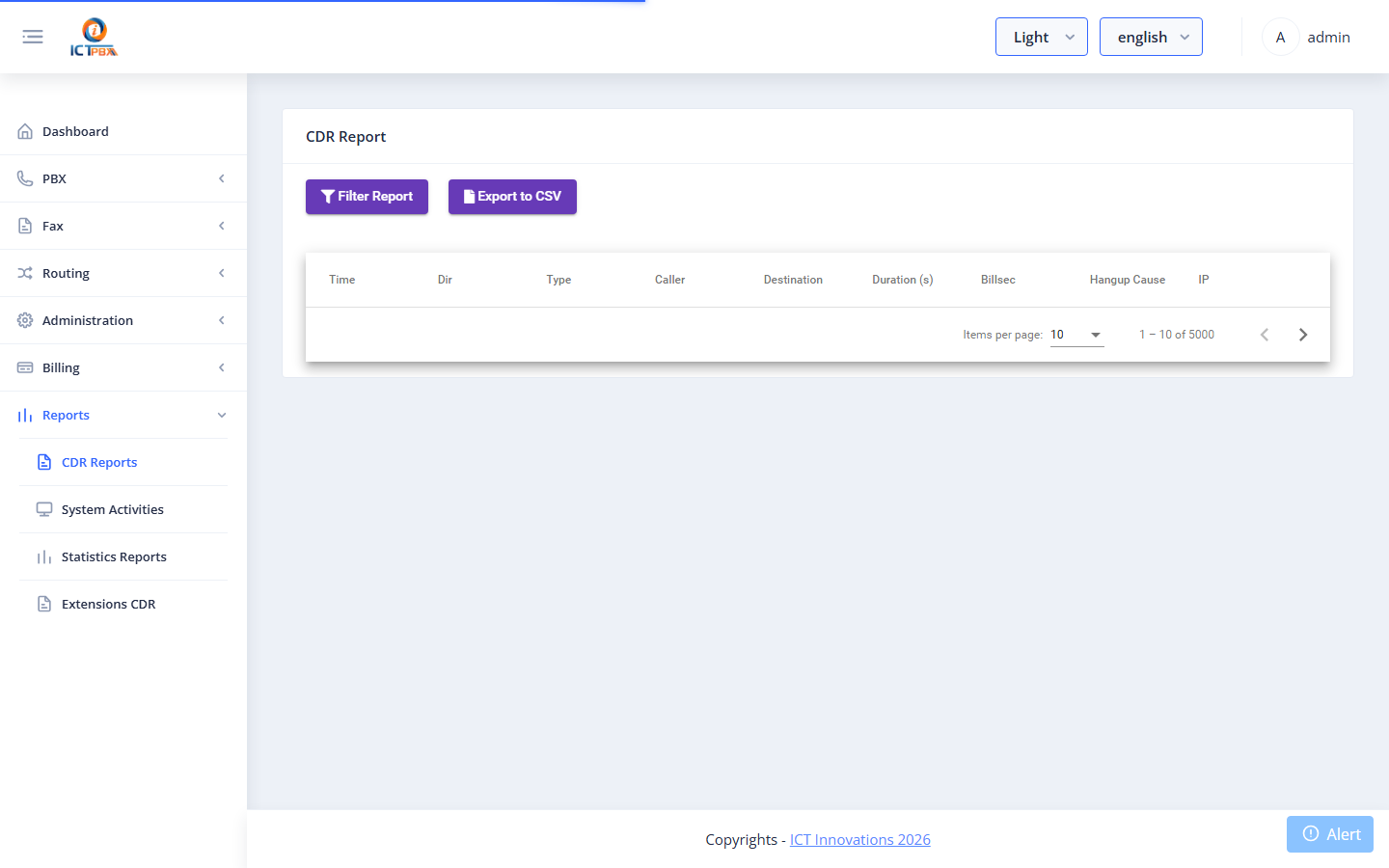

CDR Reports #
Go to Reports → CDR Reports to view call and fax detail records.

Filter by date range, tenant, user, or direction. Export to CSV for billing or compliance purposes.
Other reports: PBX CDR (raw PBX call records, Super Admin only), System Activities, Statistics Reports and Extensions CDR.
Trunks #
Go to Routing → Provider / Trunks to manage SIP trunks connecting to your telecom carrier. Trunks are managed by the Super Admin only and shared by all tenants.

Enter the Provider Name, Gateway Type (SIP), Username / Password, Host / Proxy, Port and whether to Register. Saving applies the trunk to the phone system immediately: no restart needed. (The old PBX → Gateways menu has been removed.)
Then use:
- Routing → Routes: outbound routes: which trunk carries which service and destinations.
- Routing → DID Numbers: add inbound numbers (one at a time, in batch, or by import) and assign them to tenants.
- Routing → CID Numbers: caller ID numbers that can be assigned for outbound calls.
Phones, softphones and trunks use SIP port 5080 (UDP/TCP); nothing listens on 5060.
